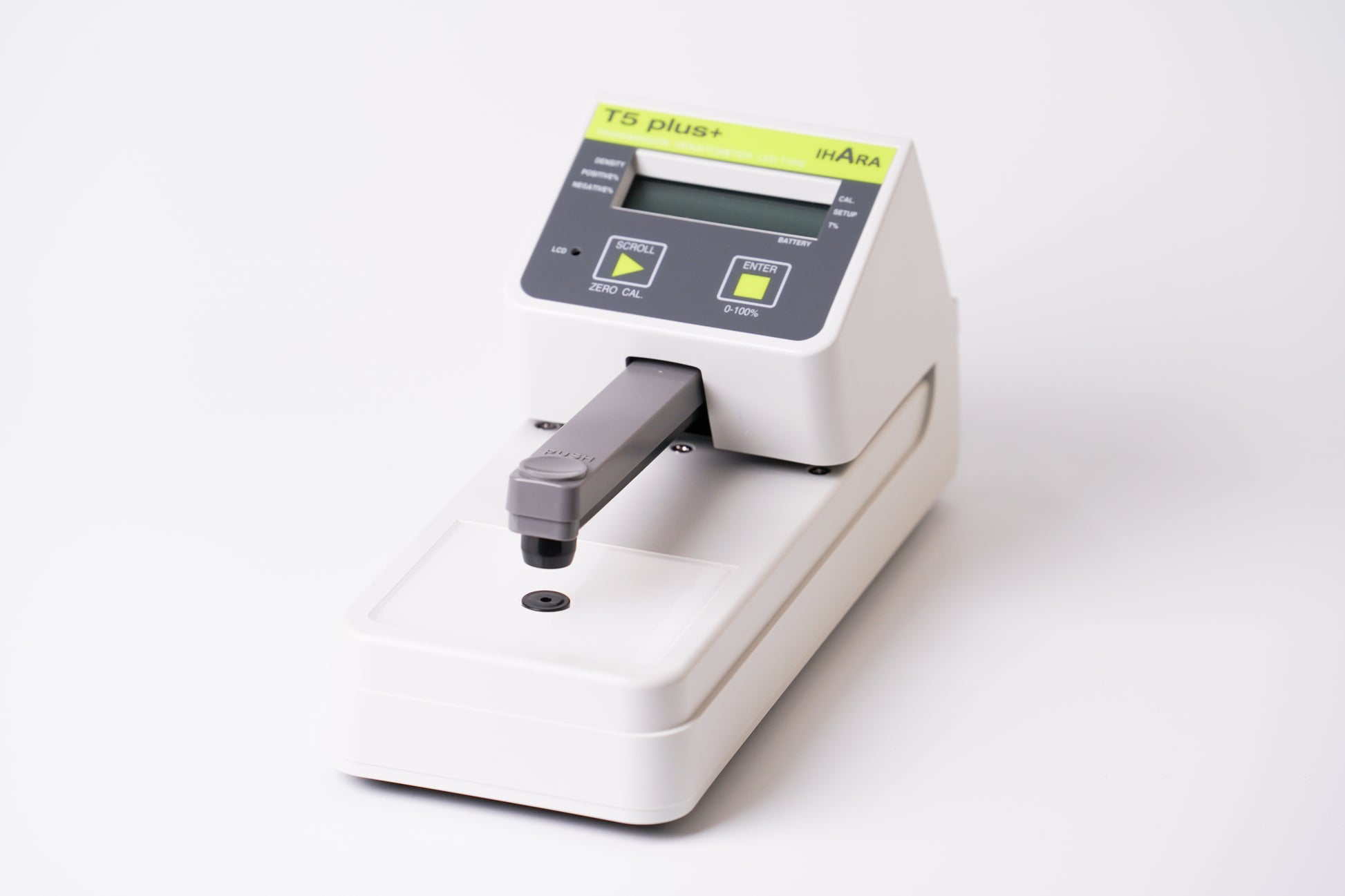

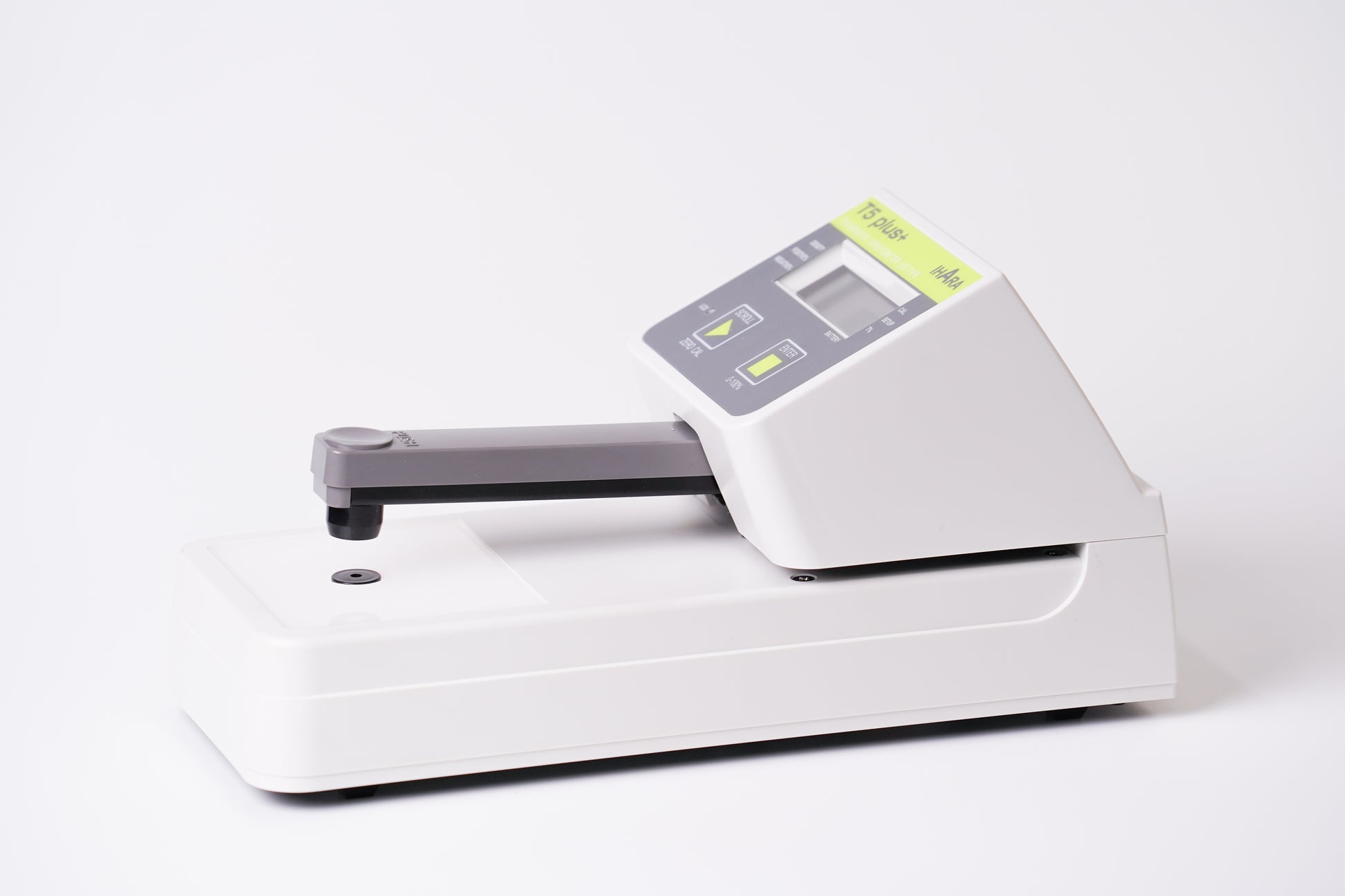

Black & White Transmission Densitometer T5plus+

Latest model with an advanced LED light source.

In contrast to the T5Plus, which used halogen lamps as its measuring light source, the T5Plus+ is equipped with the latest LED light source.
LED light sources have a longer life, lower current consumption and more stable luminous flux compared to halogen lamps.
This significantly reduces the frequency of maintenance due to lamp-out.

High Performance with Versatile Measurement Functions

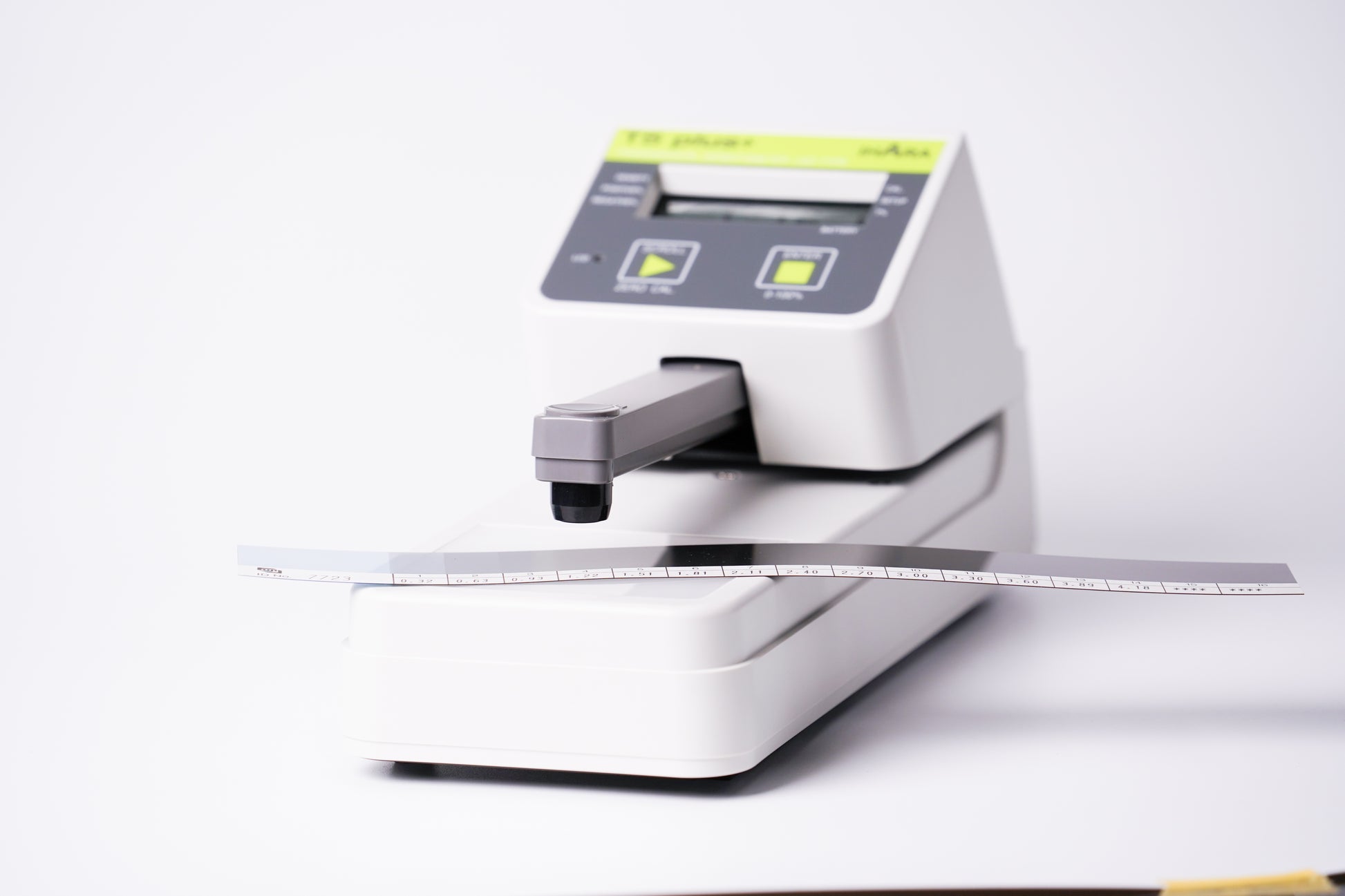

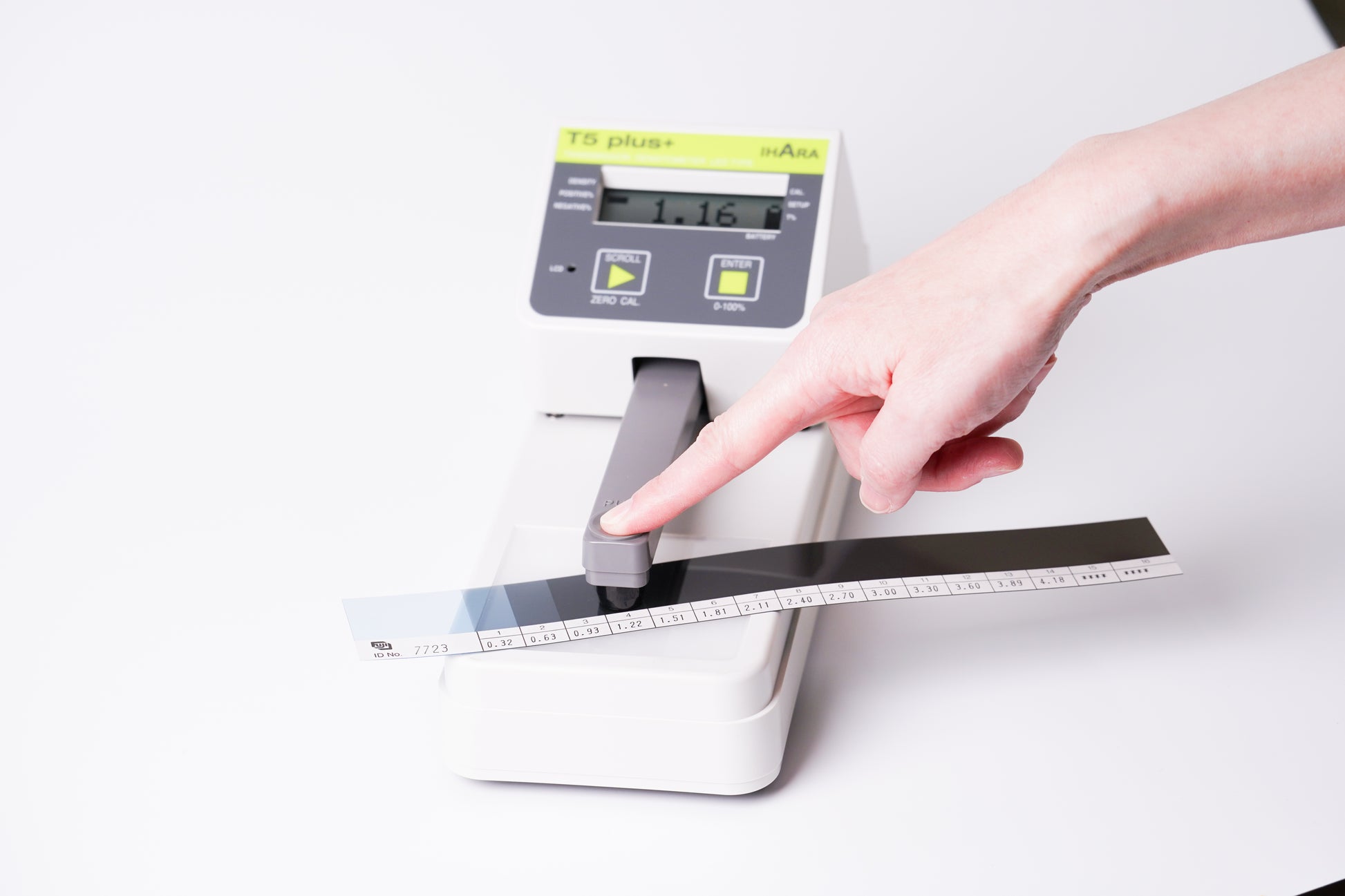

The T5Plus+ is a high performance black & white transmission densitometer.  It measures density, dot%, and transmittance% (opacity) in film, glass, plastic, coating, and resin, etc.   Moreover, the built-in light table allows for accurate positioning.  This instrument measures up 6.0D density, and has the ability to “match” readings from other instrument manufacturers.

The standard model measures up to 1.0mm thickness.  Please contact us should your application requires a greater thickness.

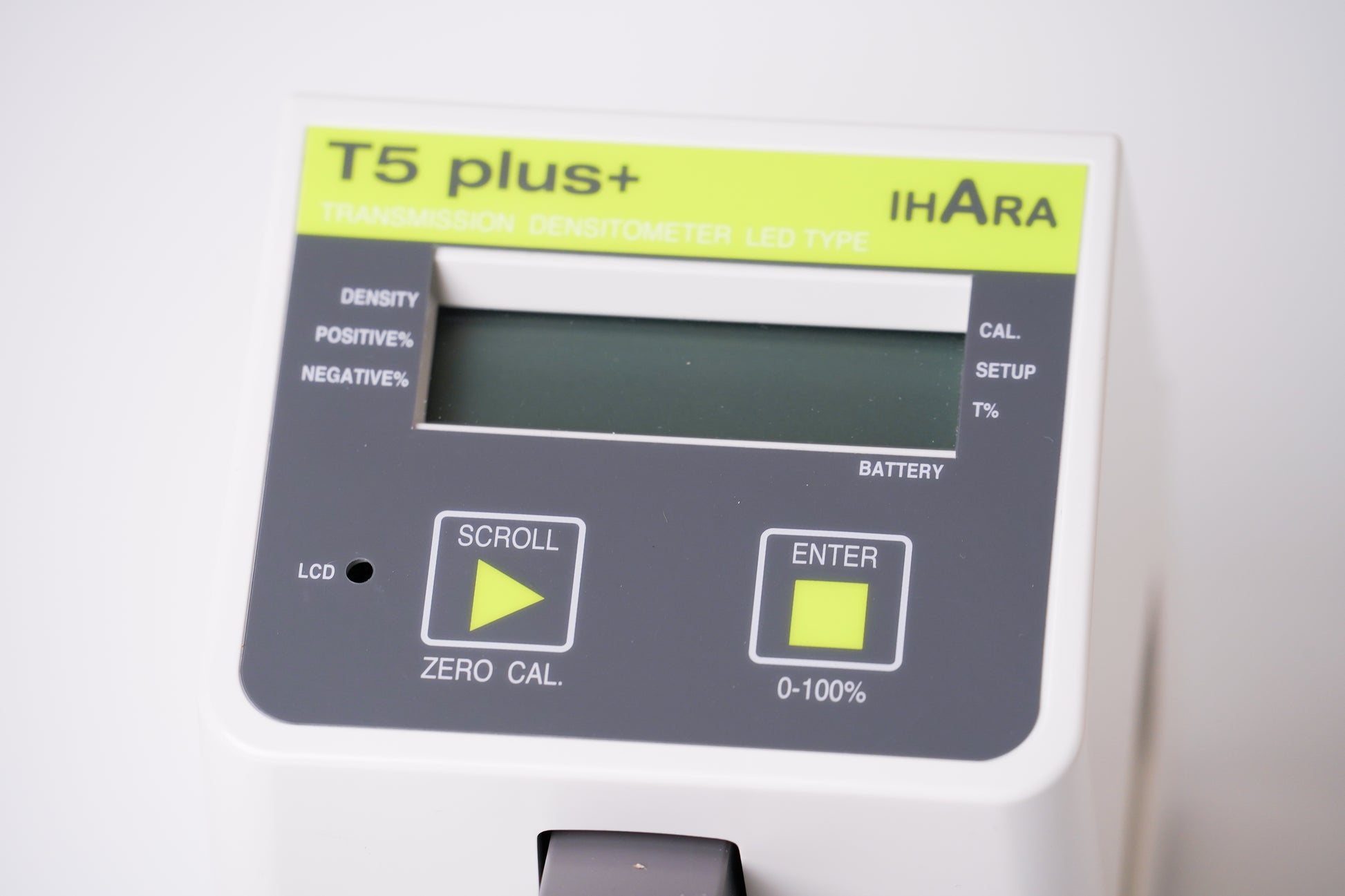

Simplicity with Intuitive Interface

The T5Plus+ has a simple operating user interface that requires little or no prior experience.   The user simply scrolls to the measurement desired, and follows the self-guided prompt.
