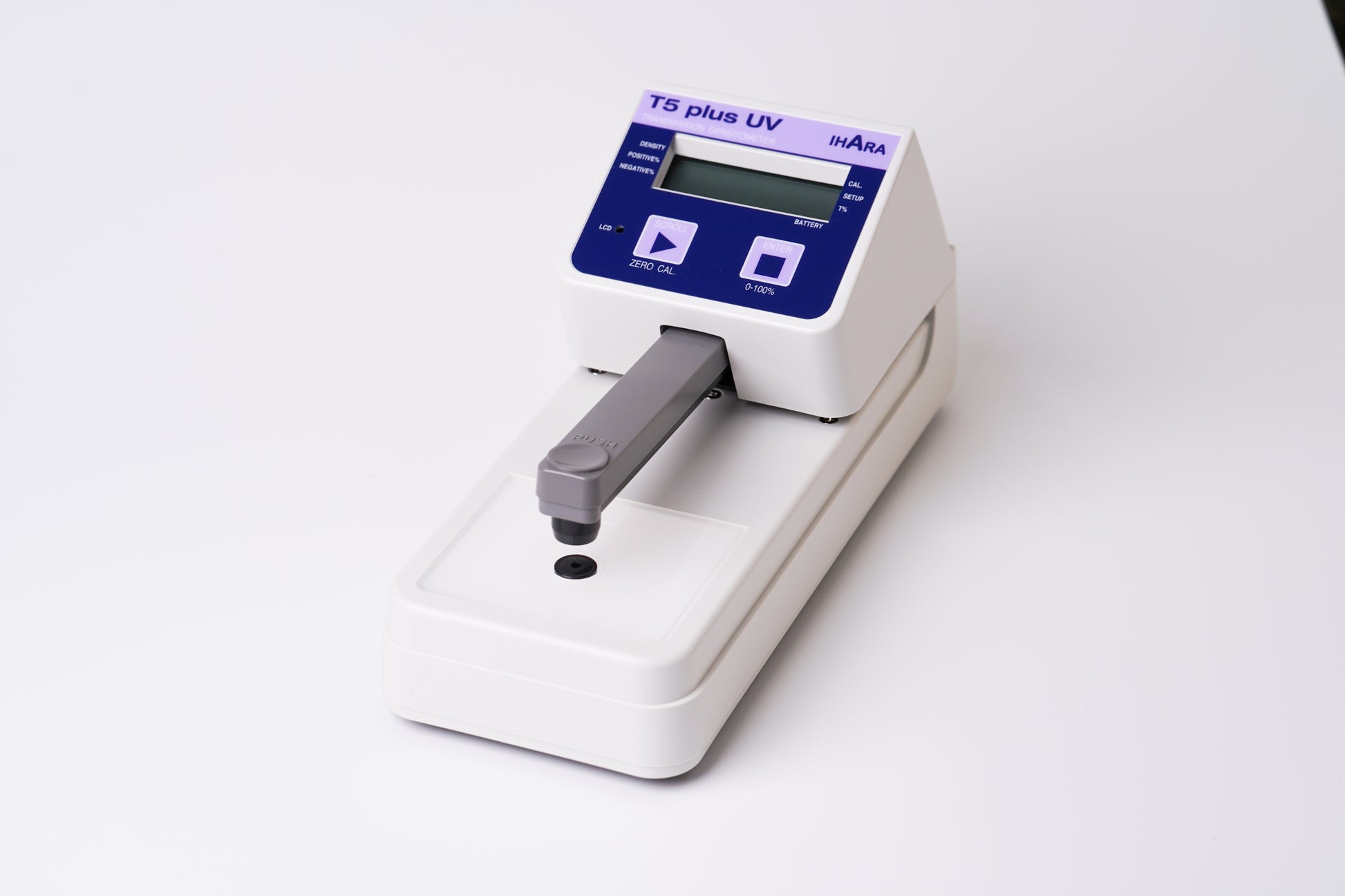

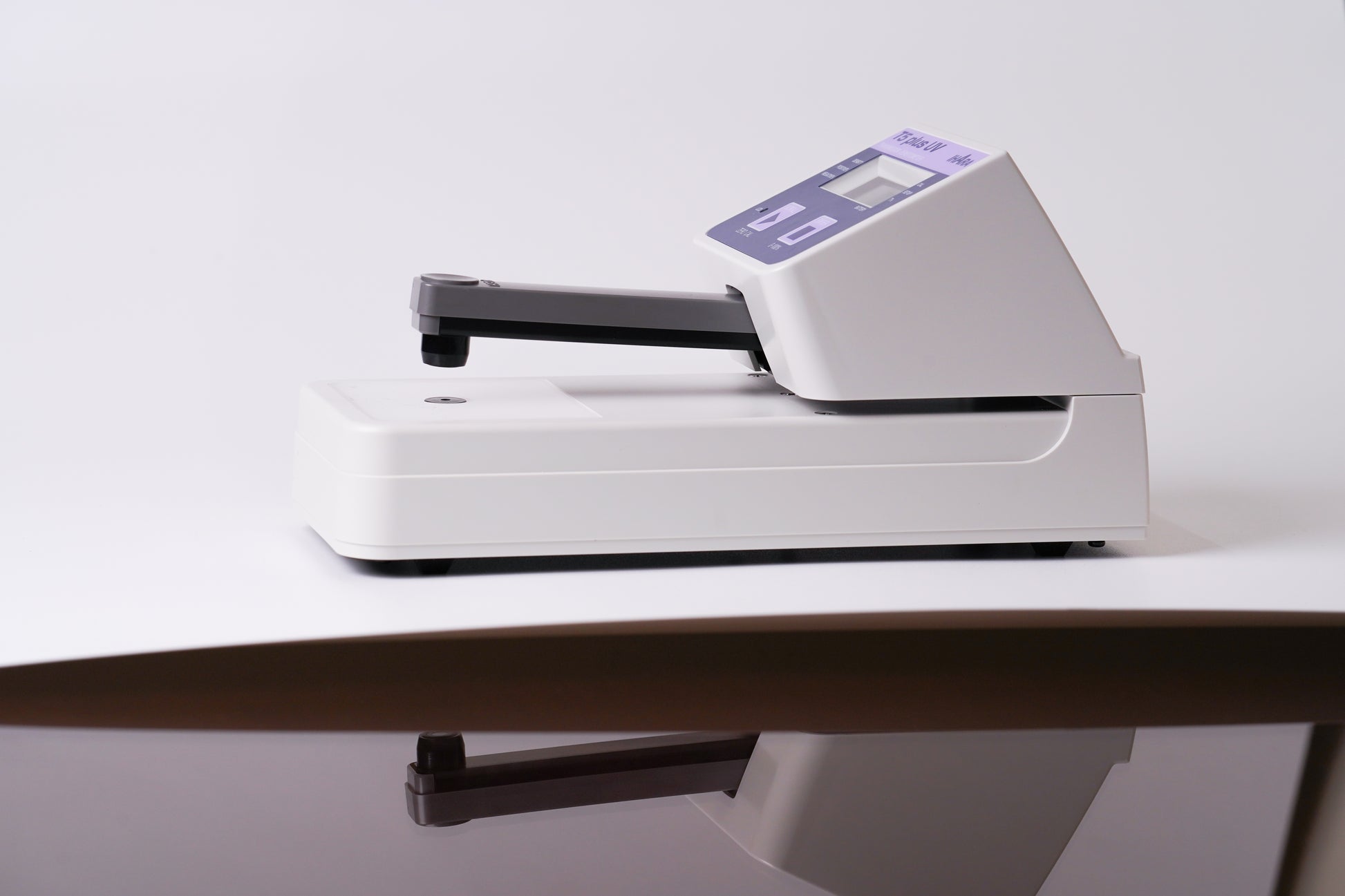

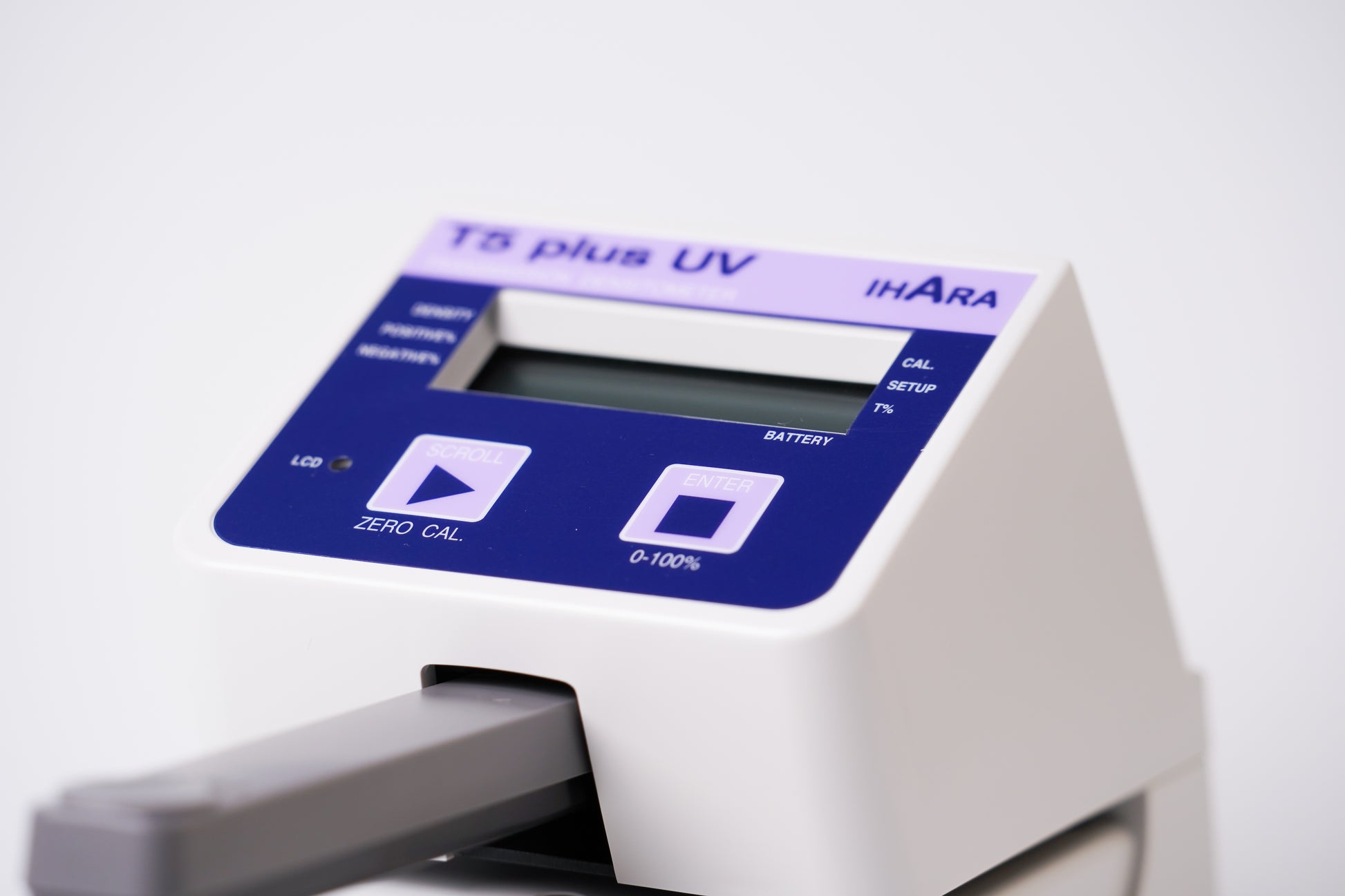

UV Light Transmission Densitometer T5plusUV

Transmission densitometers in the UV wavelength range.

As a derivative of the T5plus transmission densitometer, the de facto standard in the industry, the T5plusUV is capable of measuring transmission density in the UV wavelength range (λ = 405 nm or 385 nm).

Advanced UV LED light source.

The T5PlusUV is equipped with the high performance UV LED light source.
LED light sources have a longer life, lower current consumption and more stable luminous flux compared to halogen lamps.
This significantly reduces the frequency of maintenance due to lamp-out.

High Performance with Versatile Measurement Functions

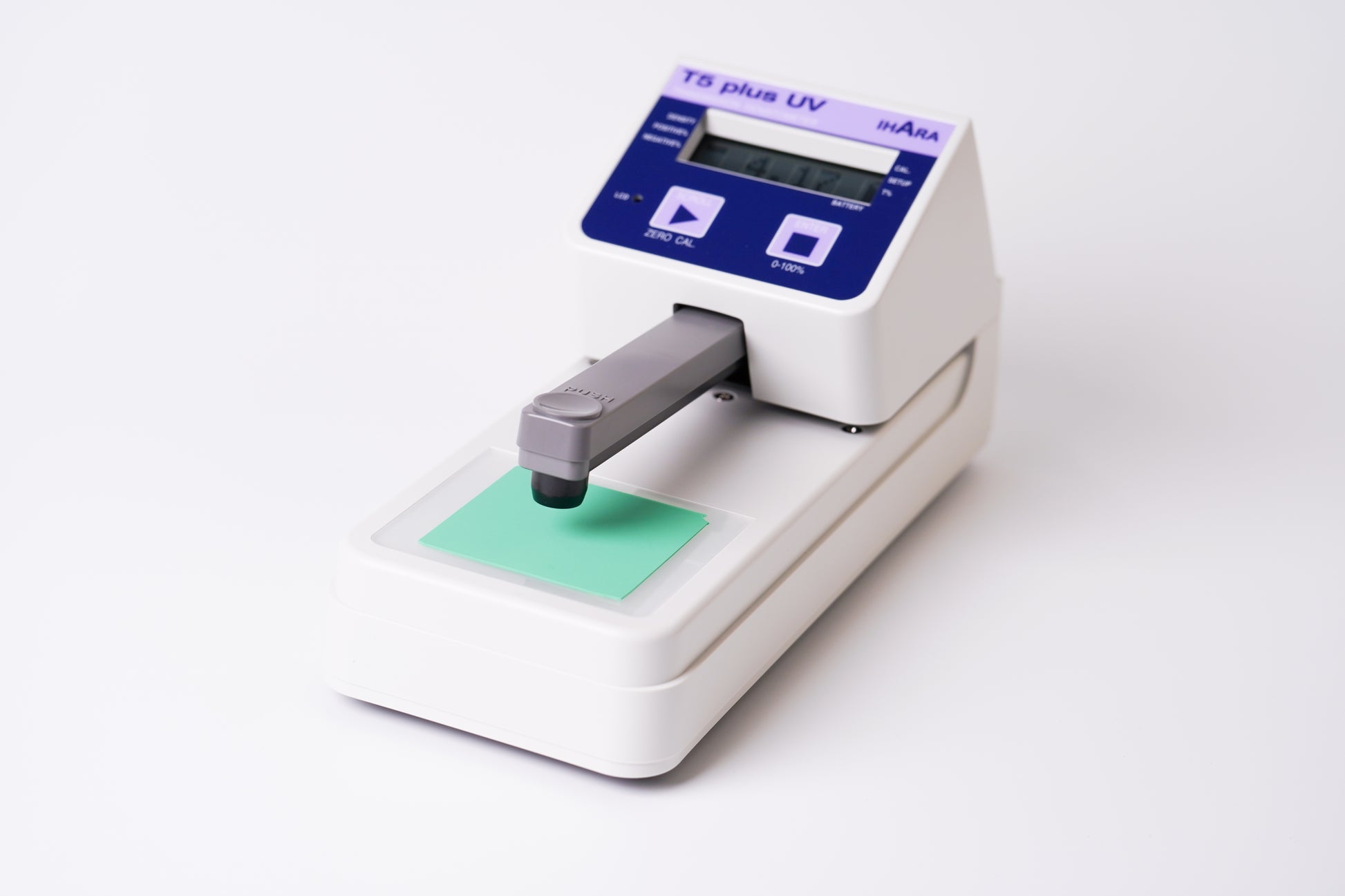

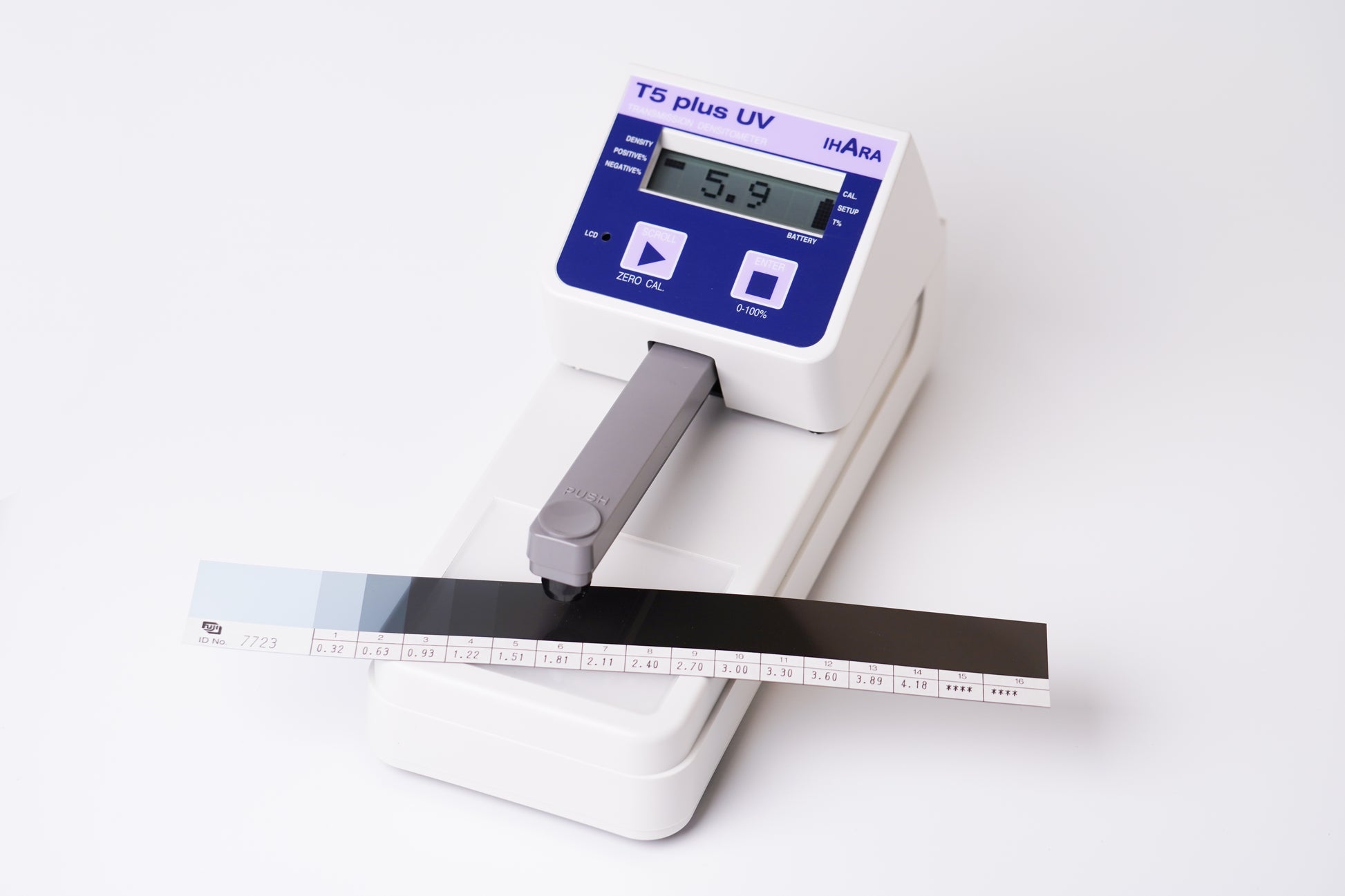

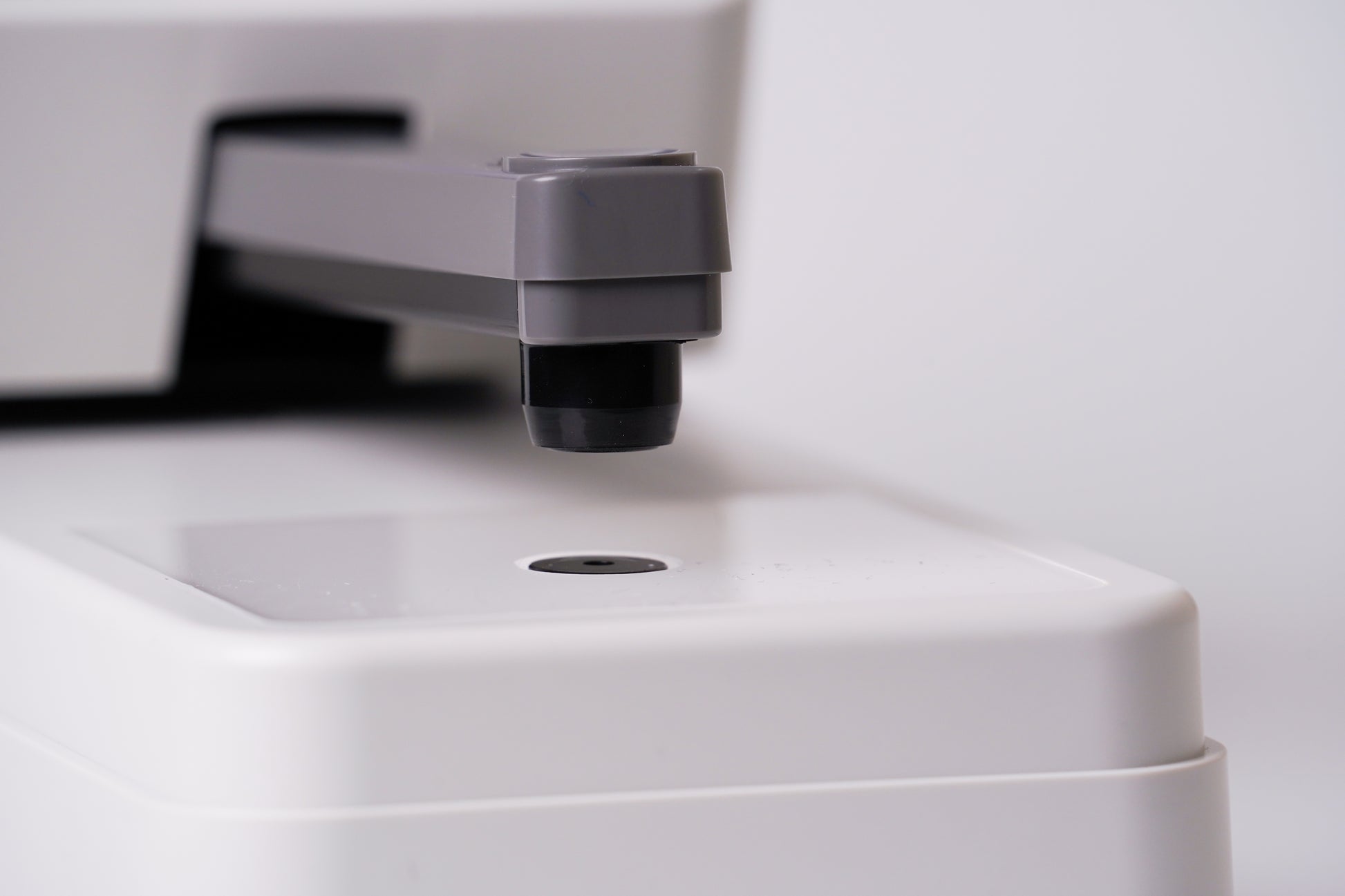

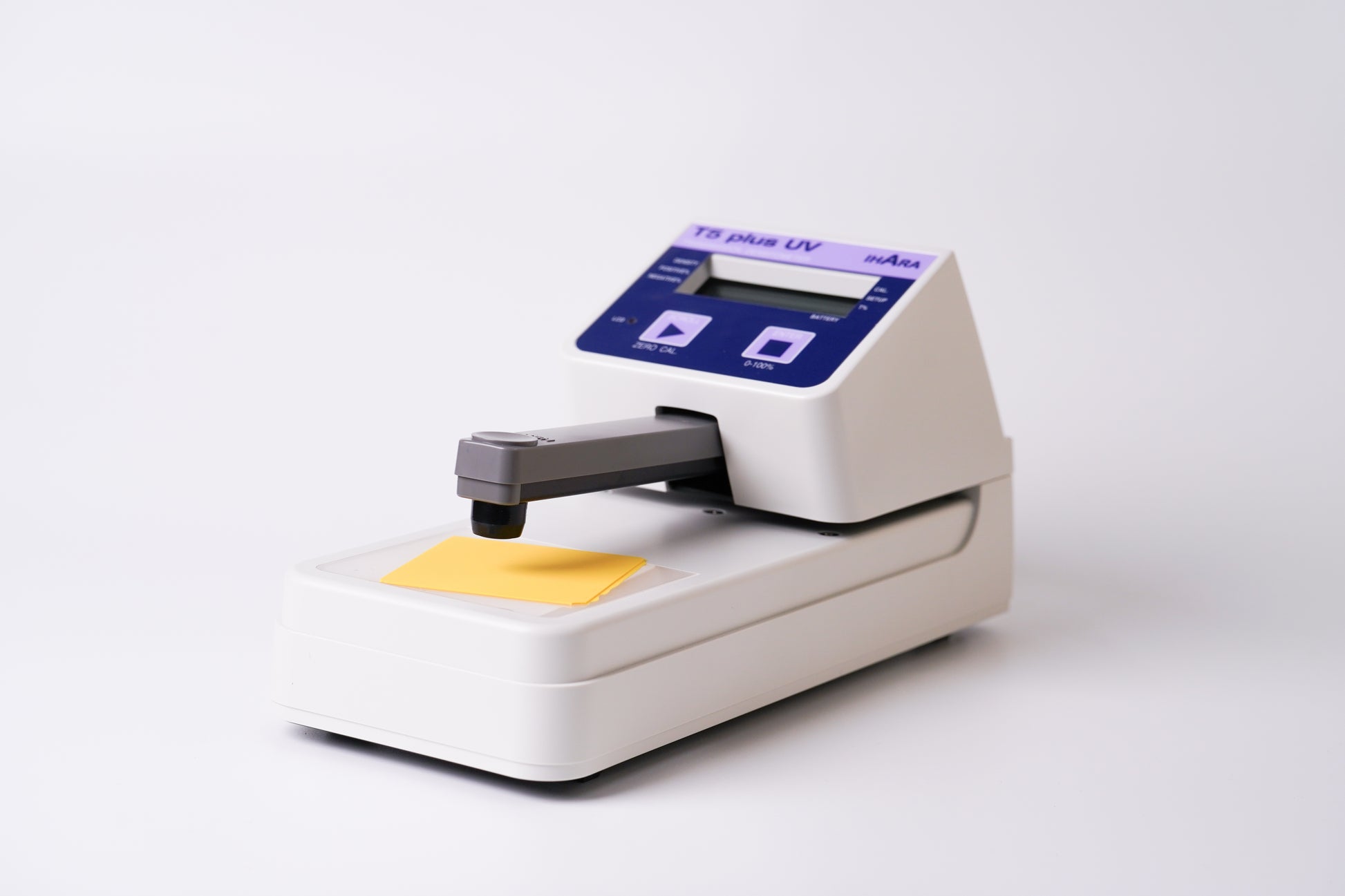

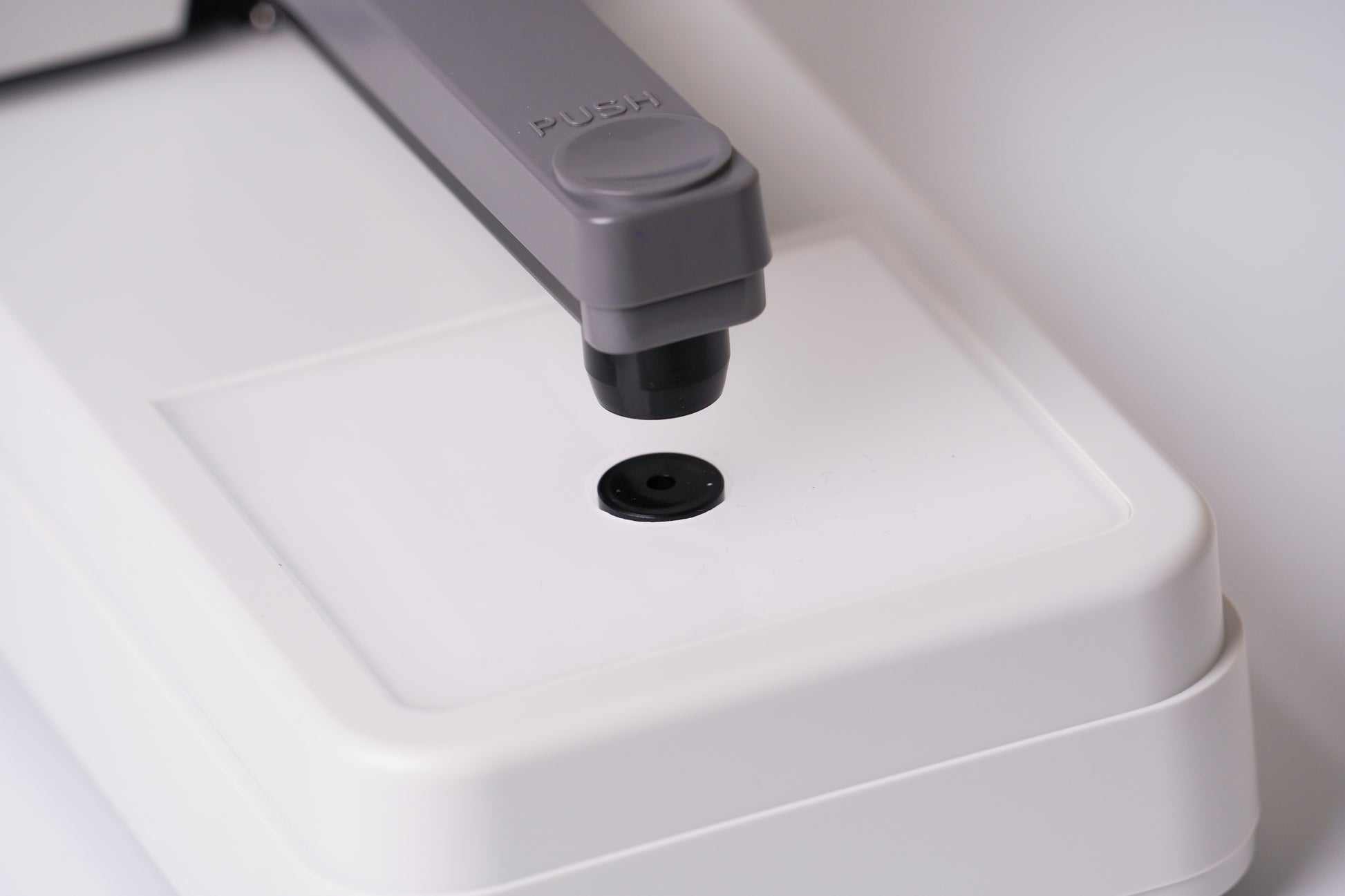

The T5PlusUV is a high performance UV transmission densitometer.  It measures density, dot%, and transmittance% (opacity) in film, glass, plastic, coating, and resin, etc.   Moreover, the built-in light table allows for accurate positioning.  This instrument measures up 6.0D density, and has the ability to “match” readings from other instrument manufacturers.
The standard model measures up to 1.0mm thickness.  Please contact us should your application requires a greater thickness.

Simplicity with Intuitive Interface

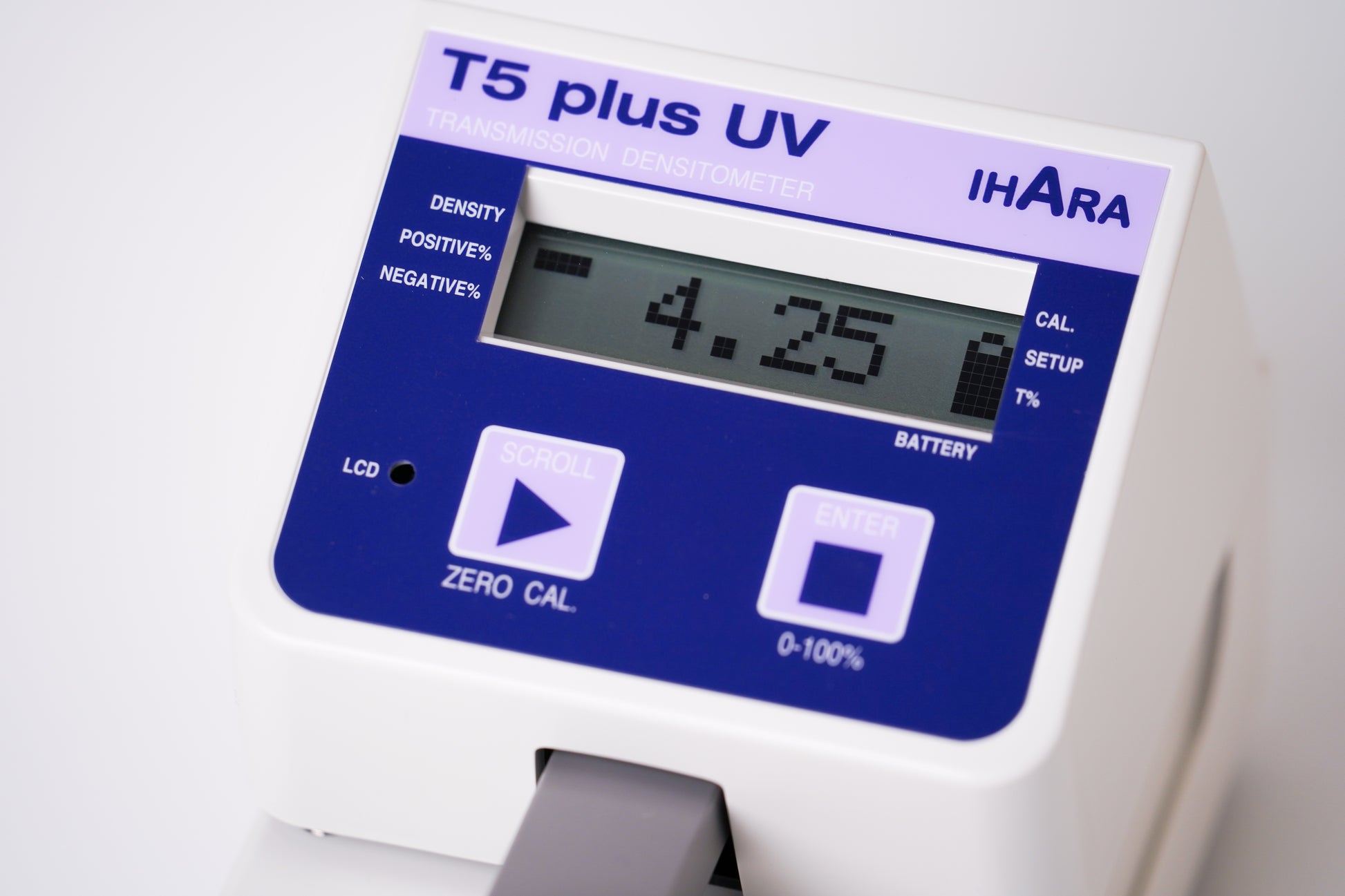

The T5PlusUV has a simple operating user interface that requires little or no prior experience.   The user simply scrolls to the measurement desired, and follows the self-guided prompt.
